Sorcóir tilting silo gráin

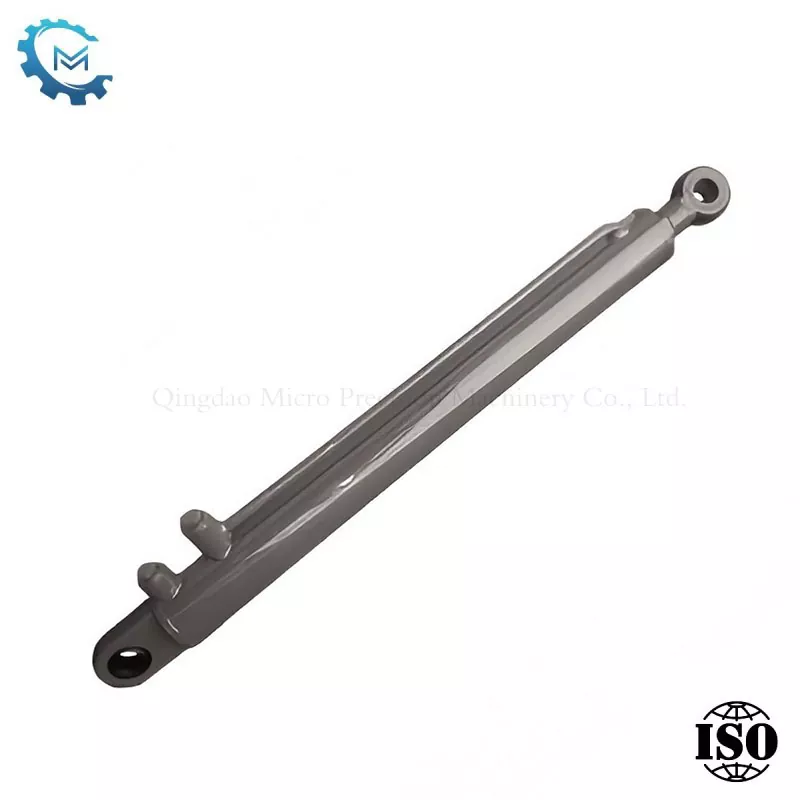

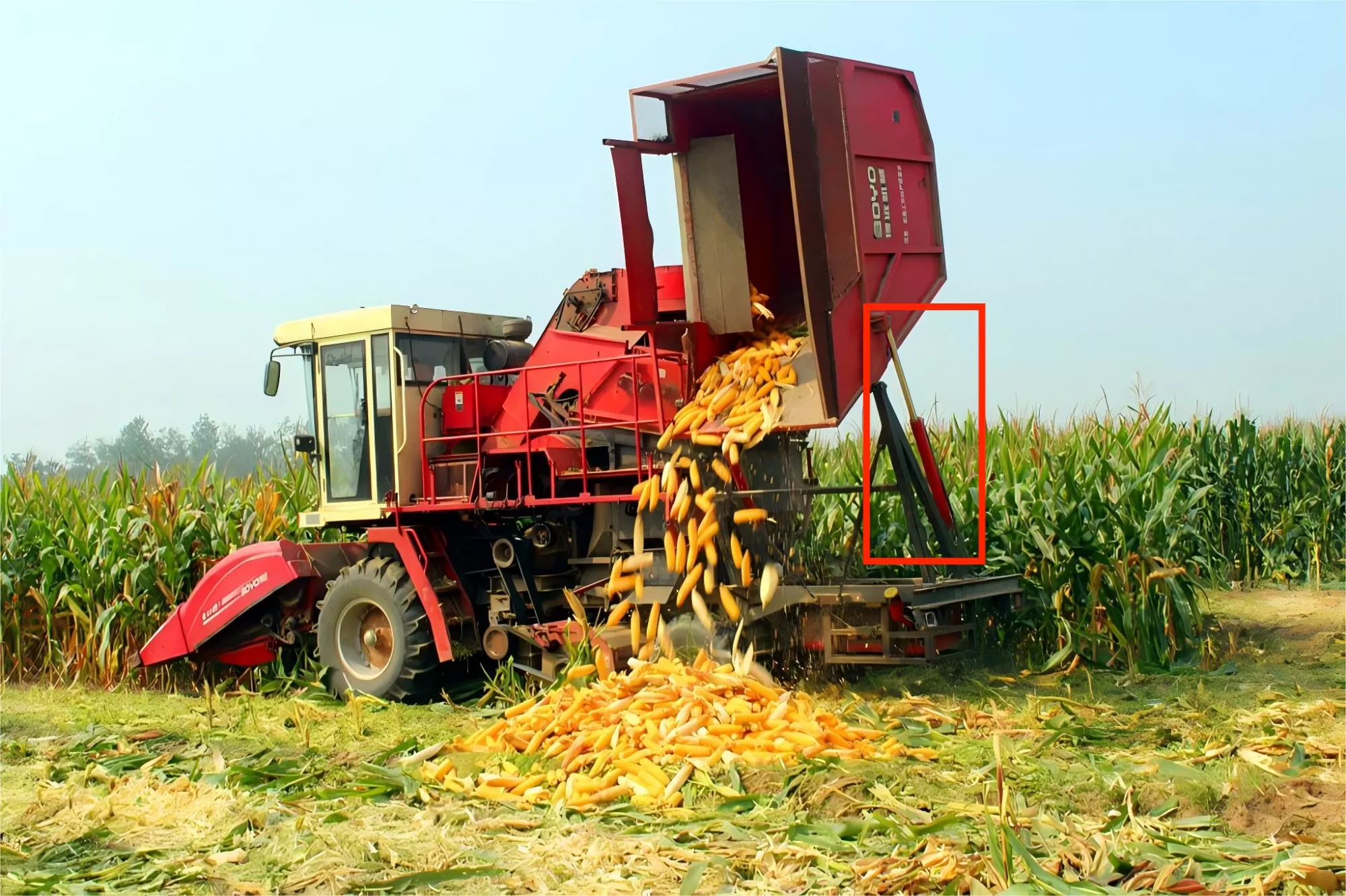

Grain Silo Tilting Cylinder is a special hydraulic actuator for agricultural harvesting machinery such as rice and corn. It is mainly used to control the tilting, tipping or lifting of the grain silo, which is convenient for loading and unloading, cleaning and ventilation of grain.

Features：

Silo tilting hydraulic ram is designed by Micro Precision Machinery for high-performance grain handling, providing strength and durability for grain harvesting and transfer. As a reliable agricultural grain bin cylinder, precise hydraulic control ensures smooth and adjustable operation, while the use of brand seals such as Parker minimizes wear and ensures long-term use. Customization of different sizes is acceptable.

Material：

Barrel:

- Standard: Quenched & tempered 45# steel (Hard chrome-plated, ≥0.05mm)

- High corrosion resistance: Stainless steel 304/316 (Coastal/humid environments)

Piston Rod:

- 42CrMo alloy steel (High-frequency quenching + chrome plating, HRC50-55)

- Optional ceramic coating (Anti-wear for grain abrasion)

Seal Materials:

- NBR (Standard conditions)

- FKM (High temp/chemical resistance)

- PU (High wear resistance, ideal for dusty environments)

Seal Brand：NOK, Parker, MAPKER, SKF, etc.

Maintenance Guidelines:

- Seal Replacement: Every 2 years or 500K cycles (Condition-based)

- Oil Cleanliness: NAS 1638 Class 8 or higher

- Corrosion Inspection: Biannual checks for coastal areas

Parameter:

Service

25 years of experience in hydraulic cylinder manufacturers

MPM cylinders are mainly used in:

1- Construction machinery

(Hydraulic lifting cylinders and steering cylinders for cranes/forklifts/tractors/loaders/excavators)

2- Industrial equipment

(Hydraulic cylinders/tie rod cylinders/compact cylinders)

3- Ships and offshore machinery

(Heavy cylinders, stainless steel hydraulic cylinders)

If you can provide us with the following technical parameters, we can design and customize piston hydraulic cylinders according to your needs:

1. Bore

2. Rod diameter

3. Stroke

4. Working pressure

5. Installation type

6. Push or pull back capacity
